UBIO-X Face Pro

Next Generation Multi-Performance Biometric Device Second UBio-Core Support Model: Brand New, Slim, and Compact Design

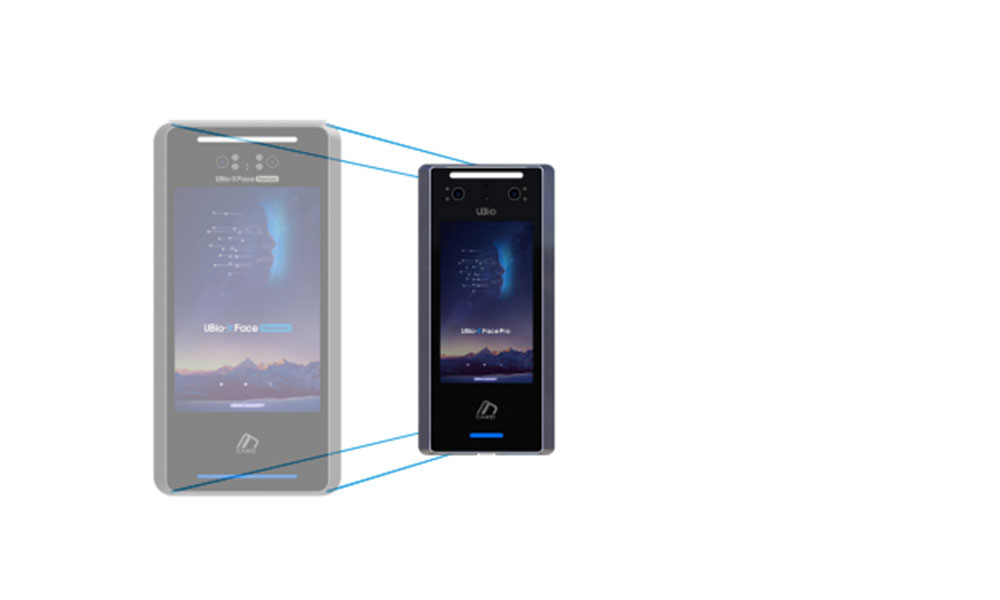

SLIM AND COMPACT DESIGN

UBio-X Face Pro features a compact design that allows for each installation and operation at all entrances, from small stores to large buildings, without constraints on locations or environments.

  • Wider and Slimmer Design : 92mm X 200mm X 21mm
  • Lighter Weight : 336g

UBIO-CORE

UBio-Core is a new firmware brand. Without replacing the device itself, we offer whole new
functions and solutions through a single firmware update.

UBIO-X Face Pro

TECHNICAL SPECIFICATION

MODEL NAME UBIO-X FACE PRO
GENERAL CPU 1.8GHz QUAD-Core
NPU O (2.3 TOPS)
MEMORY FLASH 16GB eMMC
RAM 4GB (LPDDR4)
LCD TYPE 5′ (TFT IPS LCD)
RESOLUTION 720 X 1280
SPEAKER Audio Codec 1W
MIC Waterproof MIC
Operating Temperature -20℃ ~ 60℃
Operating Humidity 0% ~ 90%, non-condensing
Weight 336g
Dimension (W*H*D) 92 X 200 X 21
Temperature O
IP Rating IP55
Cetificates KC / CE / FCC
BIOMETRICS FACE Recognition Distance 0.5M ~ 2M
Matching Speed < 1 sec
Liveness Detection O
FINGERPRINT Template UNION / ISO19794-2 / ANSI-378
Extractor / Matcher MINEX certified & compliant
Image Dimension 256*292
Resolution 500 DPI
LiveFinger Detection O
RF RF READ RANGE EM 50 mm
Smart Card 50 mm
DESFIRE EV1 / EV2 / EV3 45 mm
FELICA 30 mm
RF OPTION 125KHz EM All in One
13.56MHz Smart Card
Mifare (Plus)
Felica
ISO14443 A/B
ISO 15693
DESFIRE EV1 / EV2 / EV3
HID Prox Option
HID iCLass Option
MOBILE CARD NFC O
BLE O
QR Image Sensor 640 X 480
Symbologies 1D / 2D
FOV (H x V) 42° x 31.5°
Mobile Phone (iOS) Iphone: iOS 10.0 or above / BLE4.2 or above
Mobile Phone (Android) Android 6.0 or above / NFC Supported Device
Encryption Azure Key Vault / AES-128
Recognition Distance 10cm (difference in models)
Server Platform On Premise / Cloud
CAPACITY FACE 1:N 30,000
1:1 30,000
FINGERPRINT 1:N 50,000
1:1 500,000
Event Log 10,000,000
Picture Log 20,000
INTERFACE Ethernet 10 / 100M / 1000M 1 Port
RS-485 1 Port
RS-232 2 Port
Wiegand IN / OUT 1 Port
Relay 2 Port
USB 2.0 1 Port
Wifi O
POWER Voltage DC 15V ~ 24V
Current Max 1.1A @DC15V

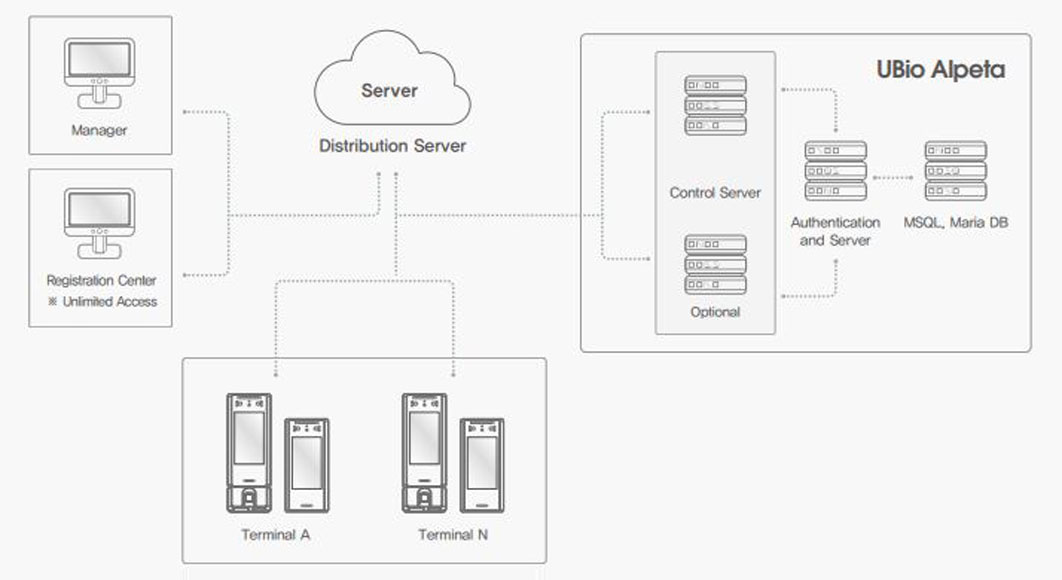

SYSTEM CONFIGURATION

FEATURES

FAST AND ACCURATE ACCESS CONTROL

It is an industry-leading performance access control device. By embedding a high-performance algorithm, users can authenticate in a faster and more accurate manner. The device enables to detect users above or below standard height.

SLIM AND COMPACT DESIGN

UBio-X Face Pro can be deployed in various sites with its compact design. With a compact and moderately sized LCD screen, it can be deployed in different facilities from small-scale to large-scale businesses.

COMPREHENSIVE RFID

UBio-X Face Pro unifies RF, SC, and HID card types into one. In addition, RF double expands the authentication distance, enhancing customer convenience. * HID iCLASS (Optional)

CONVENIENT CUSTOMER EXPERIENCE

Wi-Fi is supported for the user to wirelessly connect to the internet and integrate with UBio-X Face Pro, which provides convenient customer experience.
