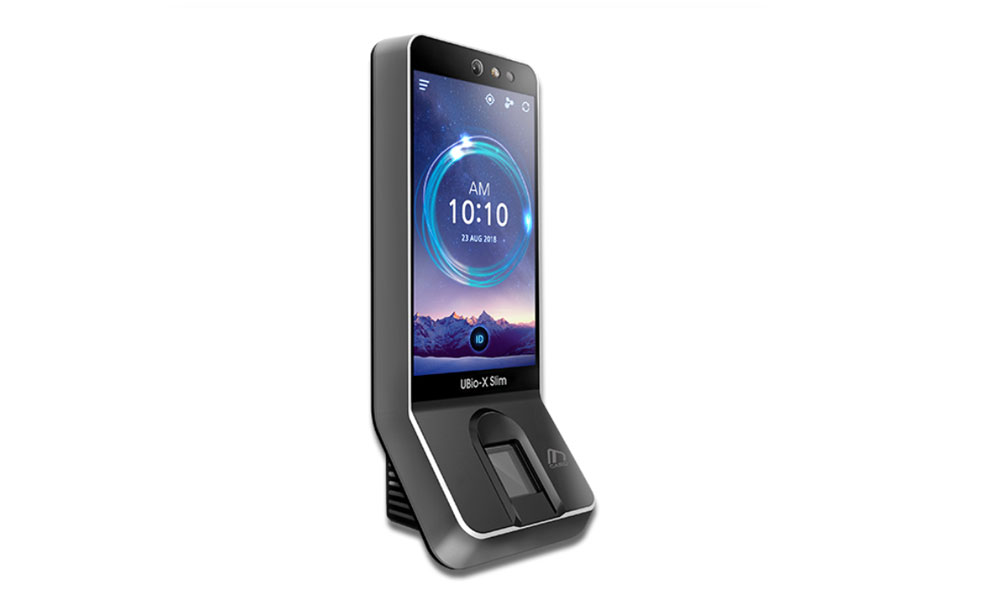

Nitgen UBio X Slim

Nitgen UBio X Slim is a compact fingerprint identification and multi-technology card reader with plenty of memory and a fast processor. The UBio X Slim reads 125KHz and 13.5MHz cards and provides accurate fingerprint recognition with proprietary fake finger detection. With a storage capacity of up to 500,000 users, the UBio X Slim is both stylish and functional.

The Nitgen UBIO-X-SLIM fingerprint reader features an optical image sensor and a 5-inch color TFT display. Suitable for use indoors. Live and false finger detection are patented.

The UBio X Slim has a 1.4 GHz Quad Core Cortex A9 Processor, 2GB RAM, and expandable storage of up to 8GB. The UBio X Slim terminal can store 500,000 users, 10,000,000 event logs, and 50,000 image logs. UBio-X Slim can work with any authentication mechanism or attendance and time system.

Nitgen UBio X Slim

TECHNICAL SPECIFICATION

AUTHENTICATION METHOD BIOMETRIC
DUST/WATER RESISTANCE X
MEMORY Max Users 500,000
Fingerprints (Templates) 200,000 (1:N, 1:1)
Logs 10,000,000
Images 50,000
COMMUNICATION With Server TCP/IP
Other USB
Wireless LAN(Wi-Fi) Optional
Wiegand OUT O
RS232 O
RS485 O
Wiegand IN O
DISPLAY LCD 5″Color Touch
Backlight O
EMBEDDED CAMERA O
CARD 125khz-EM O
HID Prox O
HID iclass O
13.56MHz Smart Card O
Keypad Touch Screen
Function Keys SOFT
Door Phone –
FP SENSOR Platen Area 16.4 X 19.4 mm
Resolution 500 dpi
DIMENSIONS (W) X (H) X (D) mm 80 x 195.6 x 23.5 (Upper) / 54.67(Lower)
FRR /FAR 0.1% / 0.0001%
Operating Temperature -20 ~ 60℃
MOBILE ACCESS CARD SYSTEM (NFC/BLE) Mobile Phone Specification iPhone: iOS 10.0 or later / BLE4.2 or later
Android: Android 6.0 or later / Supports NFC
Security / Encryption Azure Key Vault / AES-128
Distance / Range Under 10cm (It may differ depending on smartphones)
Server Platform On-Premise / Cloud

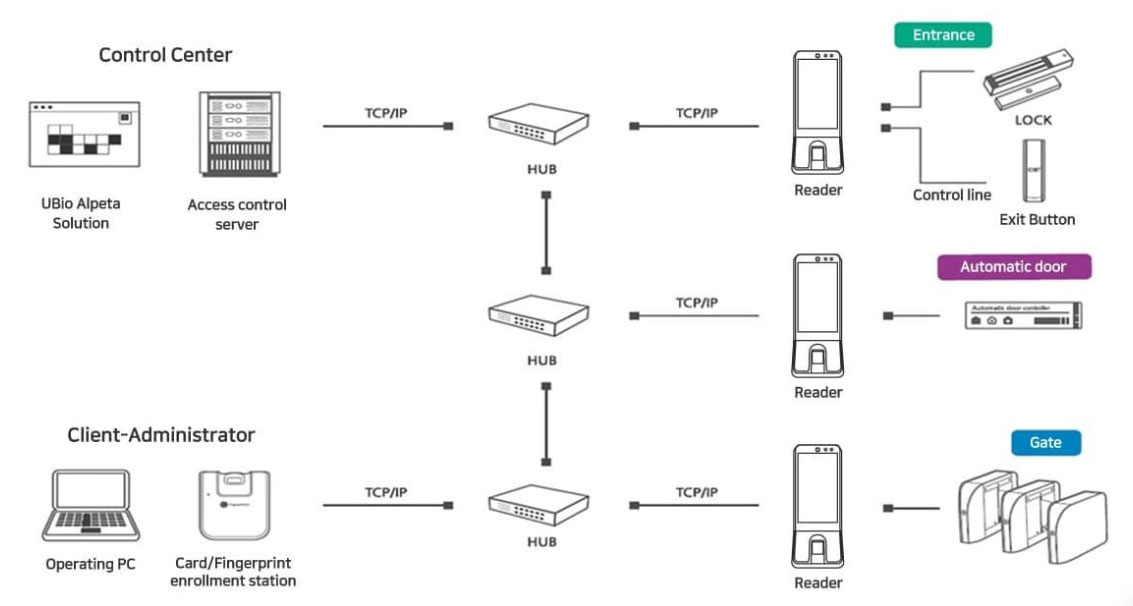

SYSTEM CONFIGURATION

KEY FEATURES

  • 5” Color TFT LCD Screen
  • Matching Speed: 200,000 templates in 1 second
  • 500,000 templates
  • 10,000,000 event logs
  • Supports multi-card technology
  • TCP/IP
  • Wi-Fi Option
Brochure Download

Despite its sleek design, the device is ideal for heavy-duty use in workplaces and facilities where a lot of people pass by each day. To prevent accidental damage, the screen is reinforced with glass. The top of the UBio X Slim’s ergonomic design features a bright LCD screen, while the lower part of the device bends inward toward the user to provide a comfortable inclined surface for placing the finger. A great choice for access control and time and attendance applications, especially where looks are important.

DLI-IT offers the best prices for Nitgen’s biometric devices and access control management systems, including the UBio X Slim, in the Middle East, with quick delivery and free pre-sales consultation.
