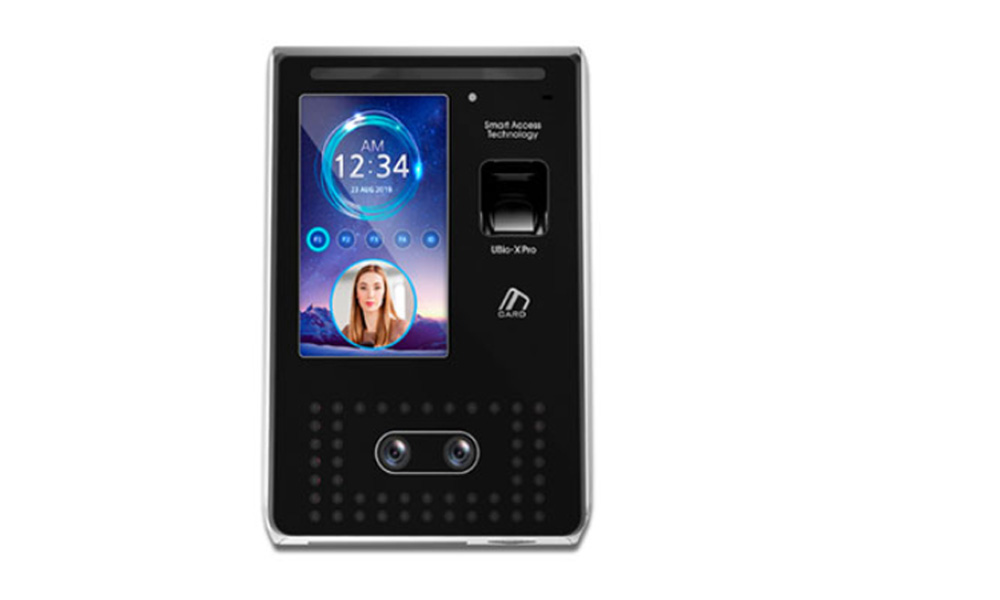

Nitgen UBio-X Pro

With its two cameras and most recent face recognition algorithm, the UBio-X Pro Nitgen face recognition terminal is used in several access control and time attendance system solutions worldwide that use face, RFID Card, and fingerprint identification technologies.

UBio-X Pro, with its powerful four-core processor and 2 GB RAM, can match 150,000 face templates in 1 second. The capacity of Nitgen’s face authentication algorithm to distinguish faces without losing accuracy even in adverse lighting situations is not the only highlight of its facial recognition capability.

Nitgen UBio-X Pro

TECHNICAL SPECIFICATION

AUTHENTICATION METHOD BIOMETRIC
Dust/ Water Resistance X
MEMORY Max Users 500,000
Fingerprints (Templates) FP : 1,000,000 (1:1)
200,000 (1:N)
Face : 1,000,000 (1:1)
150,000 (1:N)
Logs 10,000,000
Images 20,000
COMMUNICATION With Server TCP/IP
Other SD Card
Wireless LAN(Wi-Fi) Optional
Wiegand OUT O
RS232 O
RS485 O
Wiegand IN O
DISPLAY LCD 5″Color Touch
Backlight O
Embedded Camera Dual
CARD 125khz-EM O
HID Prox O
HID iclass O
13.56MHz Smart Card O
Keypad Touch Screen
Function keys SOFT
Door Phone Volp
FP SENSOR Platen Area 15.5 X 19 mm
Resolution 500 dpi
DIMENSION (W) X (H) X (D) mm 149.5 X 208.5 X89.7
FRR /FAR 0.1% / 0.0001%
OPERATING TEMPERATURE -20 ~ 60℃

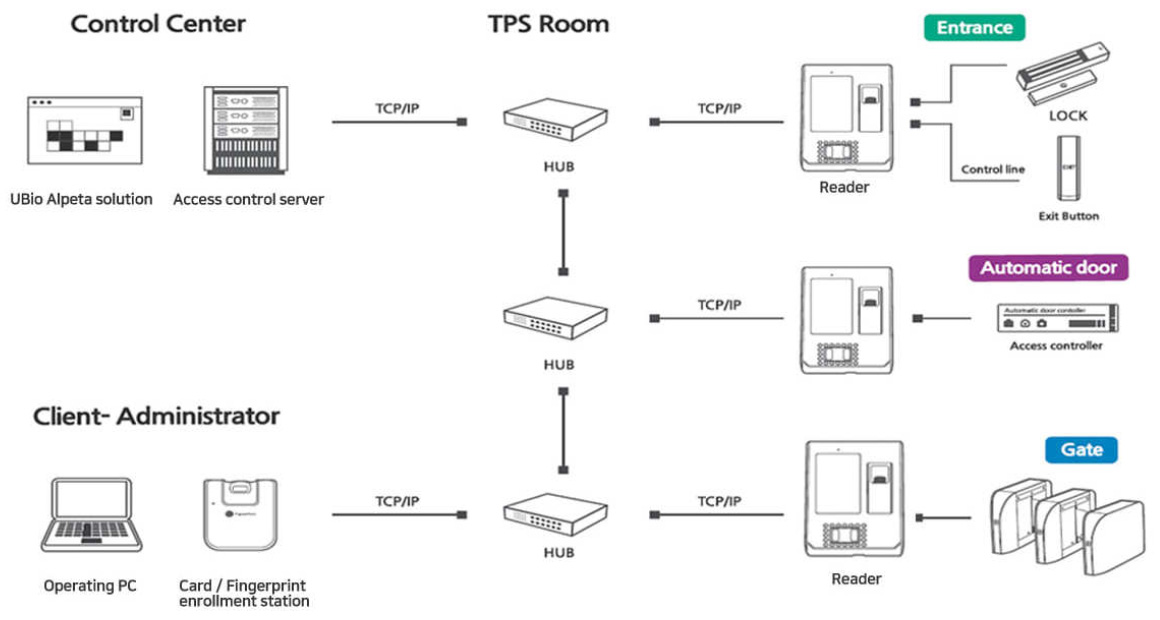

SYSTEM CONFIGURATION

KEY FEATURES

  • High Ambient light conditions Illuminance up to 30,000 Lux
  • High-Speed Face and Fingerprint Matching
  • Patented Fake Fingerprint Detection
  • 2 MP CMOS Camera w/IR LED Stronger filtering of brighter background conditions
  • 0 GHz Quad Core CPU

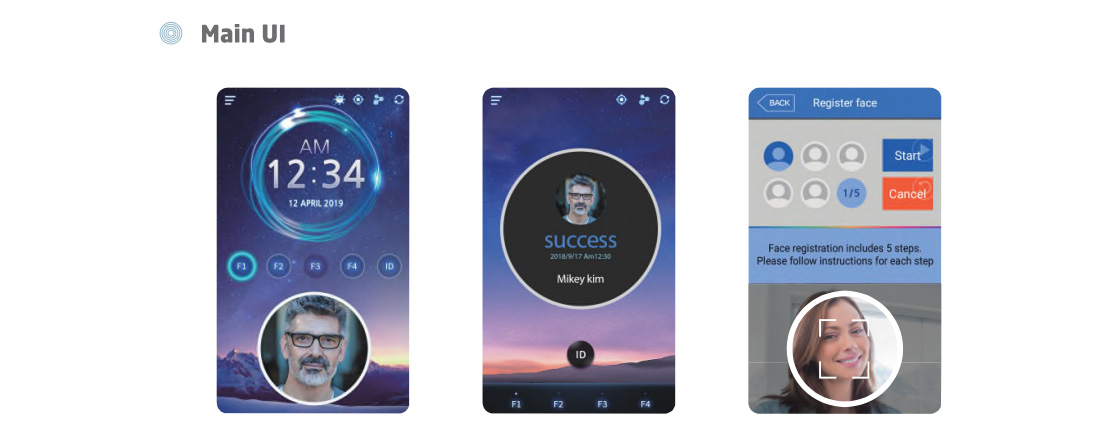

  • Android 6.0-based intuitive GUI with 5” Touch LCD
Brochure Download

DLI-IT offers the best prices for Nitgen’s biometric devices and access control management systems, including the UBio X Face, in the Middle East, with quick delivery and free pre-sales consultation.
