Nitgen Ubio X PRO 2

Multi-Biometric Face & Fingerprint Terminal

Terminal for contactless facial recognition and temperature checking. “Nitgen UBio-X Pro 2-Thermal” walk-through facial recognition system integrated with a thermal camera. Simultaneously identify an individual’s face and temperature at the same time.

Its simple enrollment approach allows you to enroll users by simply capturing a photo with your phone and uploading it to the server; alternatively, if you already have photos of your employees, you may enroll their faces by simply transferring the photos to your server. When you authenticate for the first time, it overwrites the previously registered picture on your server with the new image to improve authentication accuracy.

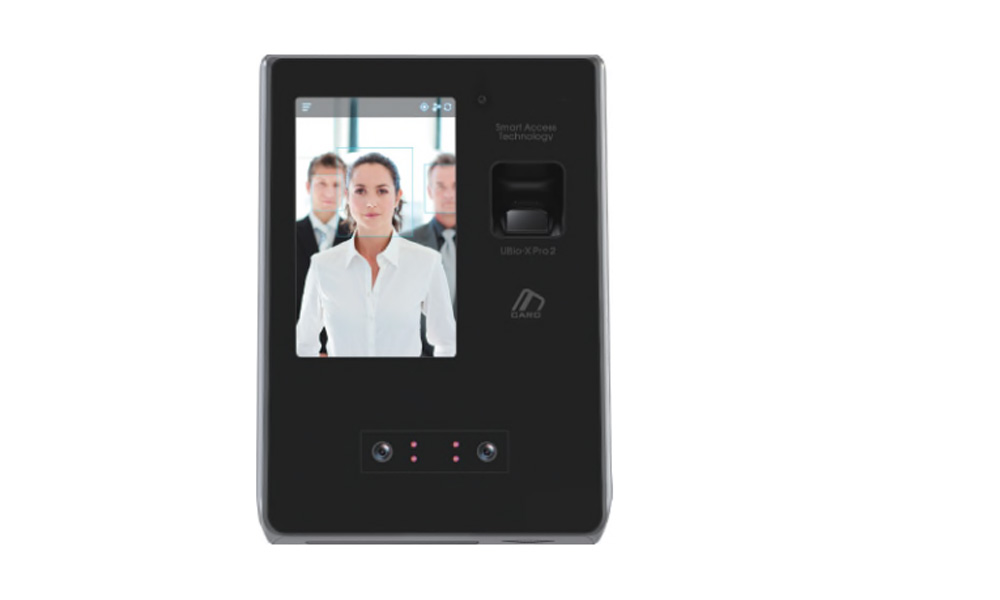

UBIO-X-Pro-2

TECHNICAL SPECIFICATION

OS Android 6.0
Fingerprint Sensor Type Optical Sensor
CPU 1.0 GHz Quad Core (Coretex- A9) + 900 MHz Dual Core (Coretex – A7)
Memory Emmc 16 Gbyte + 8 Gbyte
DDR3 2GB RAM (512 MB x 4) + 512 MB
Display 5″ color TFT LCD with Touch
RF/Smart Card Option 13.56 MHz Smart Card Reader, 125KHz- EM, HID Prox/iClass (Optional) RF Card Reader
Capacity Up to 20,000 (1 Face/1 User)
Up to 500,000 (1 Face/1 User)
Fingerprint 1:200,000 Templates < 1 sec
Face 1:20,000 Templates < 1 sec
Logs Event Logs: 10,000,000
Photo Logs: 20,000
Certificates KC, CE, FCC
Interface RS-232/ RS-485, WiFi (Optional)
Wiegand IN/OUT; SD Card socket
Dimensions 149.3 x 202.2 x 129.2 mm (W x H x D)

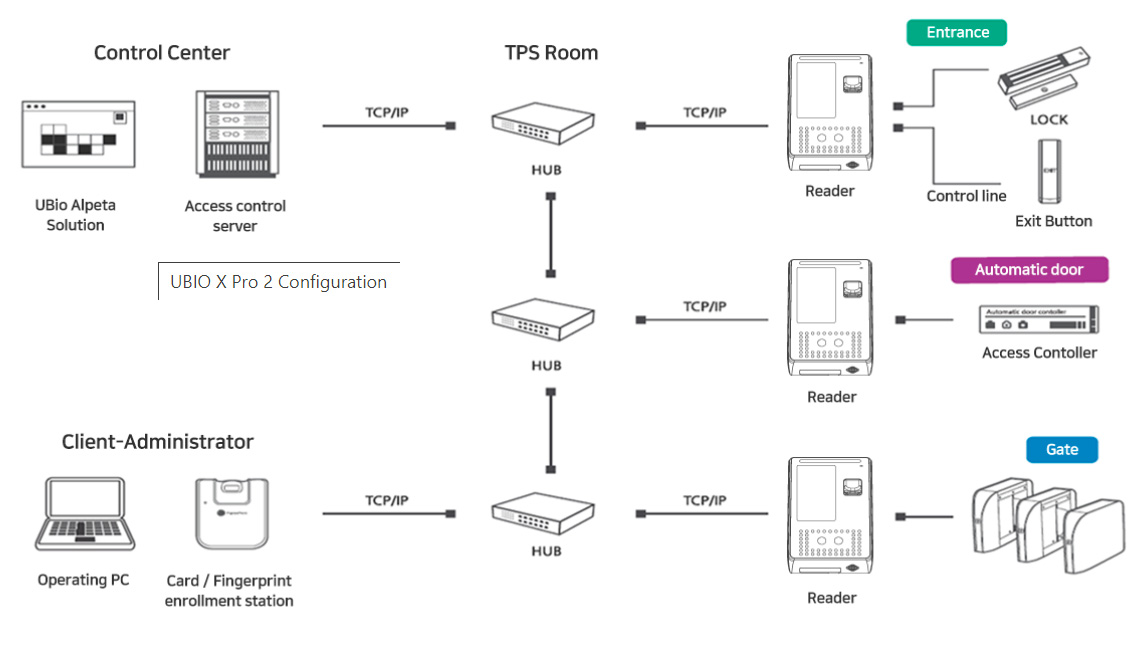

SYSTEM CONFIGURATION

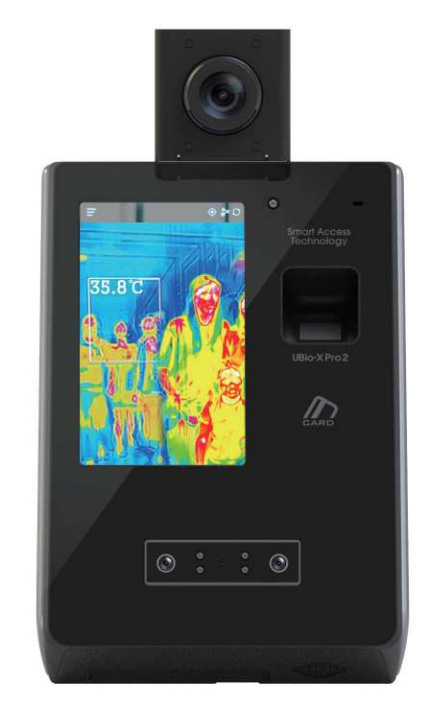

  • Integrated with a Thermal Camera and measures the user’s body temperature
  • In case of fever, access will be denied and the log data recorded on the server
  • Entrances to events, airports, metro stations, buildings, manufacturing plants, hotels, commercial complexes, shopping malls, gated societies, and more.

KEY FEATURES

  • Innovative face-recognition technology for timekeeping and access control that can detect faces up to three meters away.
  • A high-performance algorithm achieves the fastest matching speed of 20,000 face templates in 1 second.
  • The high-definition camera provides a rapid and accurate facial authentication function even in the brightest of lighting conditions (up to 25,000 lux).
  • Face recognition and fingerprint matching at lightning speed
  • Face enrollment is simple by using a camera or uploading an existing photo.
  • Fake fingerprint detection is patented in this face time and attendance device.
  • Visible light technology combined with infrared technology.
Brochure Download

DLI-IT offers the best prices for Nitgen’s biometric devices and access control management systems, including the UBio X Face, in the Middle East, with quick delivery and free pre-sales consultation.
