Nitgen eNBioAccess-T9

The enBioAccess-T9 is a face and fingerprint access controller that features NITGEN’s superior proprietary algorithm, a 5″ Touch LCD Panel, and a large memory capacity. It is a market leader in access control with high value, simultaneous RF and smart card identification, 5-inch color touch LCD, and false fingerprint detecting technology.

TECHNICAL SPECIFICATION

ITEM SPECIFICATION
CPU 1Ghz Quad Core
Memory 4GB NAND / 8GB microSD
Sensor Optical / 500 DPI (FBI-PIV Certified)
Authentication Type Face, Fingerprint, RF card, Password
1:1 Time < 0.2 sec.
1:N Time < 0.6 sec.(5,000 templates)
Max User 100,000 users
Face Capacity 100,000 Templates / 50,000 Users
Fingerprint Capacity FP : 100,000 (1:1) (1:N)
Face : 50,000 (1:1)
10,000 (1:N)
Card Capacity 100,000
Log Capacity 1,000,000
Communication TCP/IP, RS232, RS485, Wiegand In/Out (26/34 bit)
Lock Deadbolt, EM Lock, Door Strike, Automatic Door
Environment -20~60 ℃ / < RH 90%
Dimensions 149.5(W) x 208.5(H) x 46(D) mm

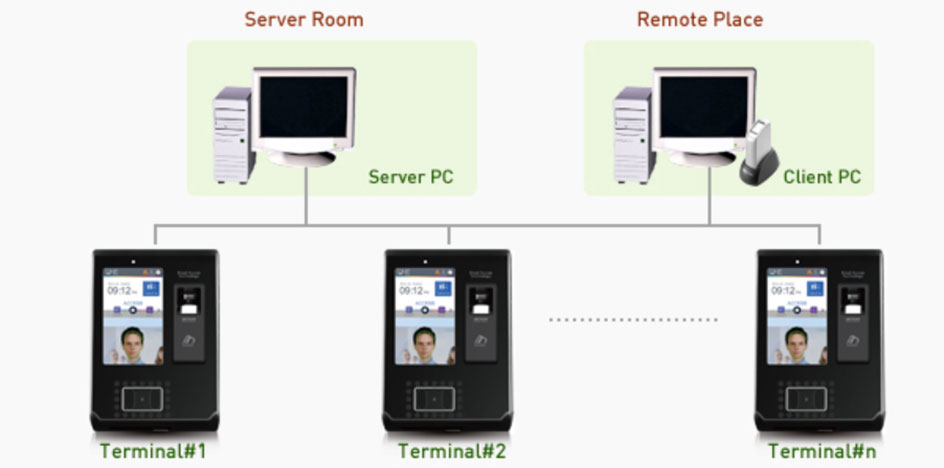

SYSTEM CONFIGURATION

KEY FEATURES

  • Face Detection and Recognition – An inbuilt tilt camera adjusts its angle based on the user’s height.
  • Face authentication in the dark is possible because of the dual camera’s IR (containing an IR LED) and color cameras.
  • PIV Certified FBI Sensor
  • Dual CPU – Face and fingerprint authentication at the same time
  • Dual Card Support – RF and Smart Card Recognition at the Same Time
  • 5″ Color Touch LCD – User-friendly User Interface – Increased Touch Sensitivity
  • Superior Matching Engine – FVC’s top-ranked algorithm (Fingerprint Verification Competition) The use of fake fingerprint detection technology ensures the highest level of security.
  • Multifactor Authentication–
  • Face, Fingerprint, Card, PIN Authentication
  • 1:1, 1: N Fingerprint authentication, shortcut ID, etc.
  • Crash Report System – When an error occurs, an analytical report is generated.
Brochure Download

DLI-IT offers the best prices for Nitgen’s biometric devices and access control management systems, including the eNBioAccess-T9, in the Middle East, with quick delivery and free pre-sales consultation.
