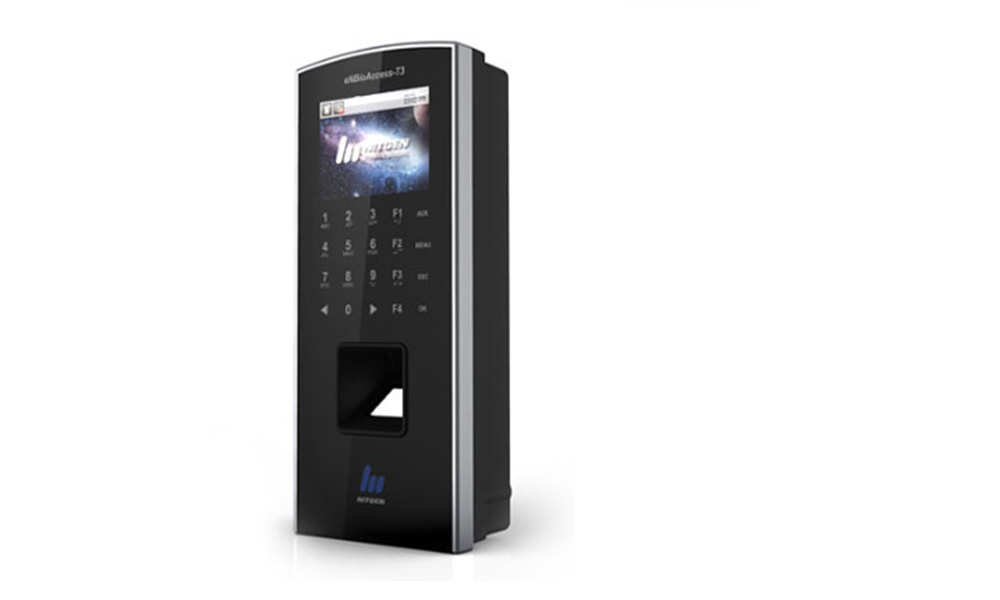

Nitgen eNBioAccess-T3

Nitgen’s eNBioAccess-T3 is a cost-effective access control and time and attendance solution. It provides an ideal balance of convenience, security, and useful features. All of the device’s recognition algorithms are highly handy. Access control and time and attendance can be configured with an RF card, fingerprint, or password. The eNBioAccess-T3 is extremely flexible and can easily adapt to your use case. To lay access control, it can be integrated with a deadbolt, electromagnetic lock, door strike, or automatic door. You can also use it to implement time and attendance-based access control, in which door unlocking is linked to clock in / clock out / absence/return, and so on, giving you additional control over employee time tracking and productivity.

TECHNICAL SPECIFICATION

ITEMS SPECIFICATIONS
CPU S3C6410 (ARM11 667MHz)
Memory 256MB DRAM / 256MB Flash
Display 2.4” TFT Color LCD
Sensor Optical / 500 DPI
Authentication Type Fingerprint, Password, RF card
1:1 Time < 0.2 sec.
1:N Time < 1 sec.(4,000 templates)
Template Capacity 20,000 templates (2 templates / 1 finger, 10,000 users)
Log Capacity 100,000 logs
Communication TCP/IP, Wiegand In/Out (26/34 bit)
Lock Deadbolt, EM Lock, Door Strike, Automatic Door
Environment -20~60 ℃ / < RH 90%
Certificate KC, CE, FCC
Dimensions 75(W) x 182.4(H) x 39.2(D) mm

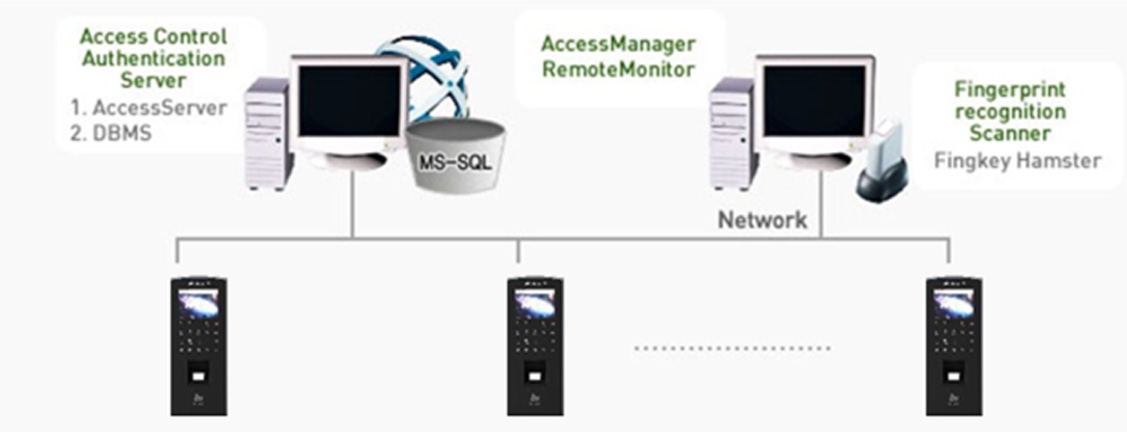

SYSTEM CONFIGURATION

KEY FEATURES

  • Authentication using Multiple Factors
    Increased security through the use of fingerprint authentication, an RF card, or a password.
  • IP54
    The IP54-rated sealed design makes it dustproof and waterproof.
  • FUNCTION KEYS
    F1 to F4 touch buttons provide access to user-defined functionalities.
    Access control linked to attendance via Clock In/Clock Out/Absence/Return.
